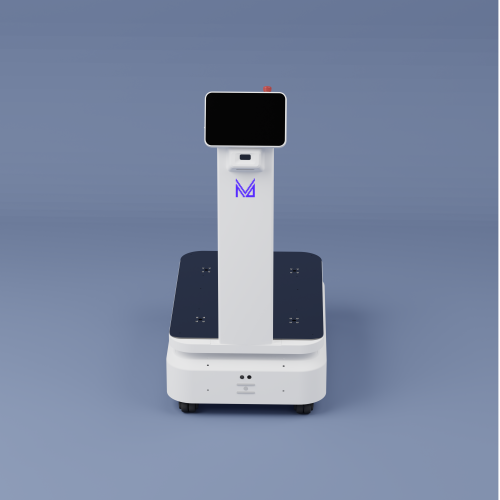

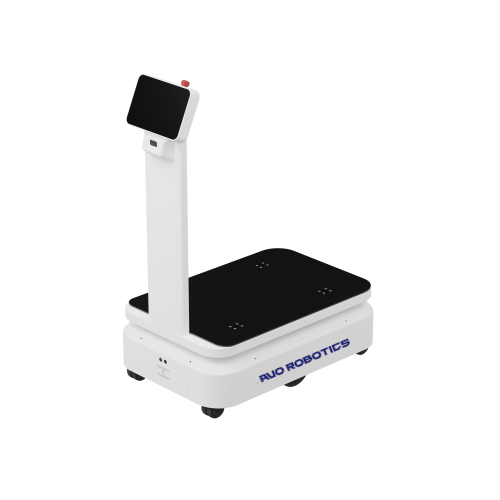

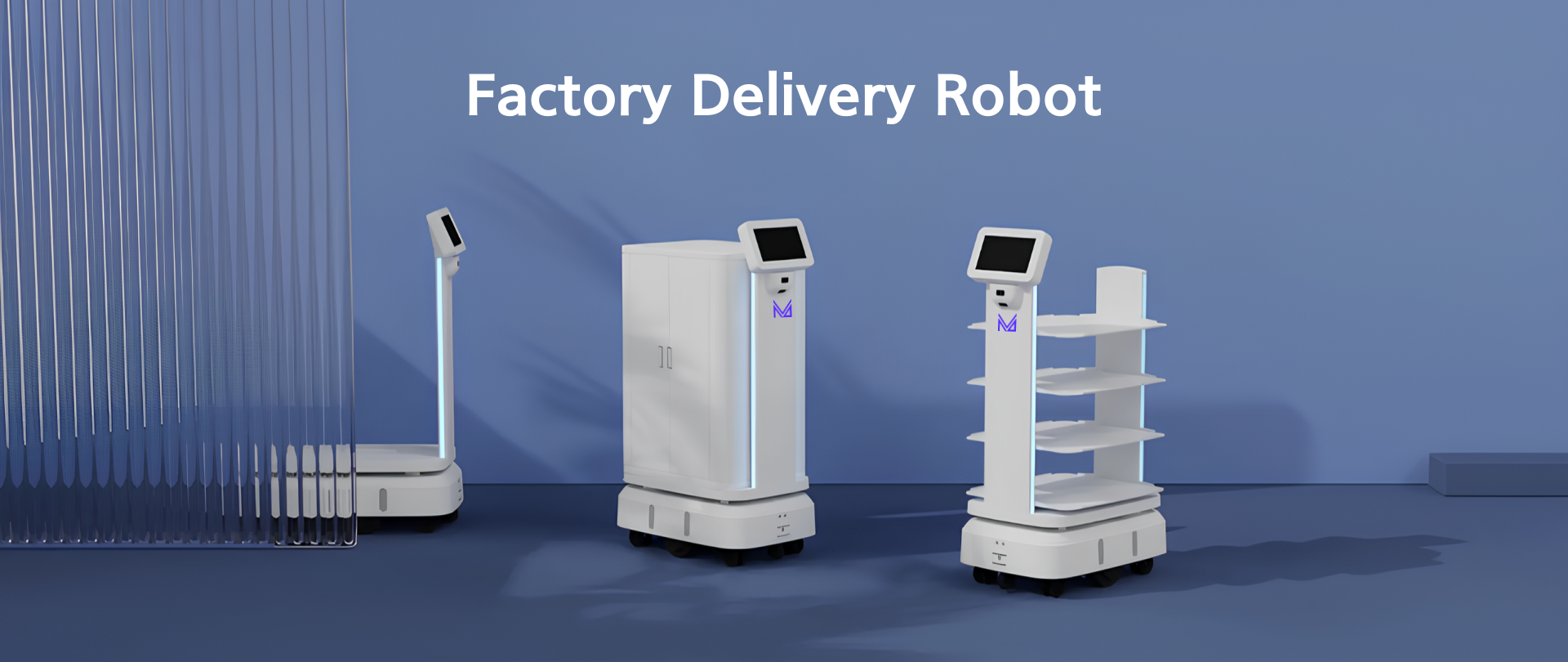

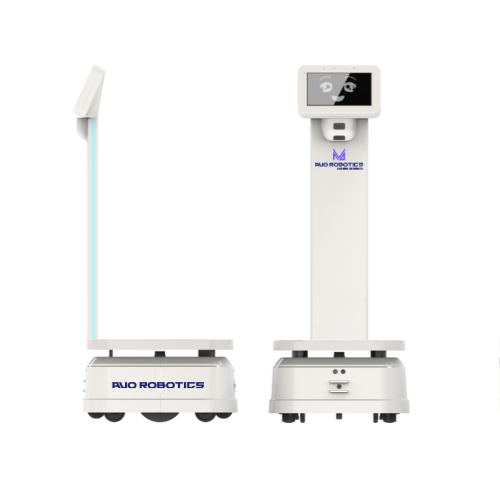

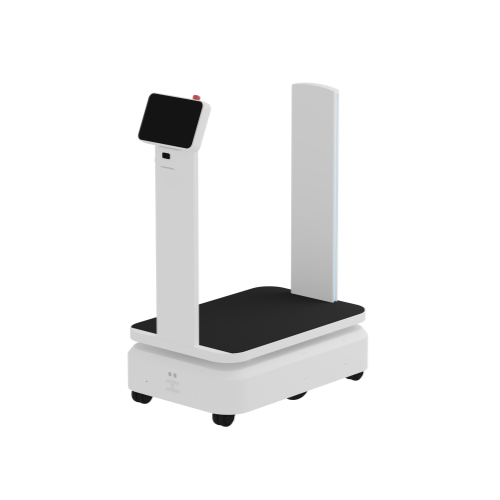

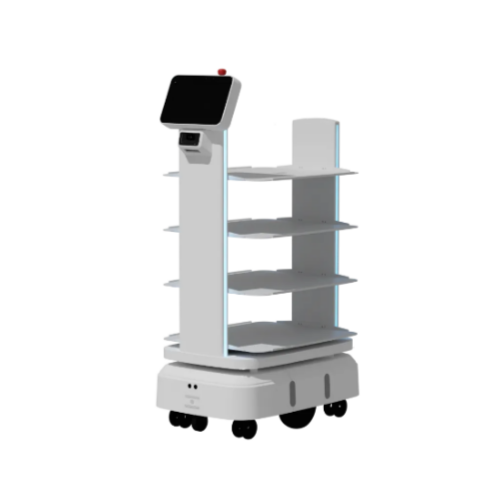

FACTORY DELIVERY ROBOT

D-SERIES DELIVERY ROBOTS.
SUPPORTING FLEXIBLE CUSTOMIZATION,

INTELLIGENT OPERATION IN NARROW SPACES.

D-80

- 80KG PAYLOAD

- LOADING AREA(mm)  : 500X424

- MINIMUM PASSAGE WIDTH : 60cm
- MAXIMUM SPEED : 1.2m/s

- POSITION ACCURACY : 10mm

- NETWORK: 4G/wifi

D-150

- 150KG PAYLOAD

- LOADING AREA(mm)  : 580X500

- MINIMUM PASSAGE WIDTH : 70cm
- MAXIMUM SPEED : 1.2m/s

- POSITION ACCURACY : 10mm

- NETWORK: 4G/wifi

D-300 / D-300E

- 300KG PAYLOAD

- LOADING AREA(mm)  : 620X500 / 770X600

- MINIMUM PASSAGE WIDTH : 70cm / 80cm
- MAXIMUM SPEED : 1.2m/s

- POSITION ACCURACY : 10mm

- NETWORK: 4G/wifi

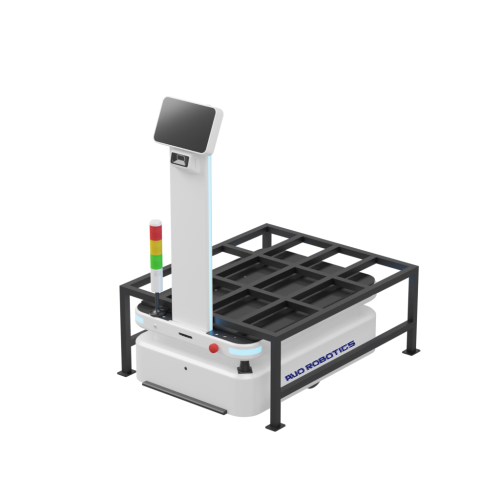

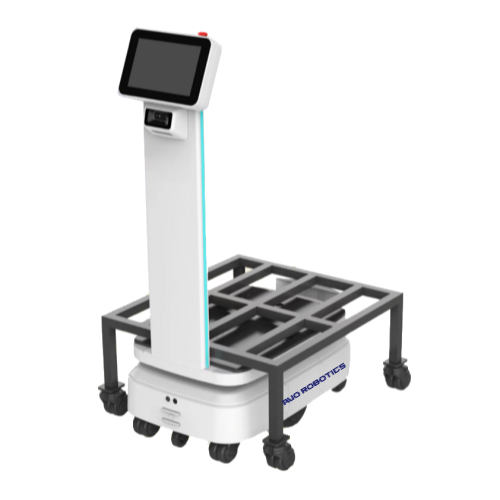

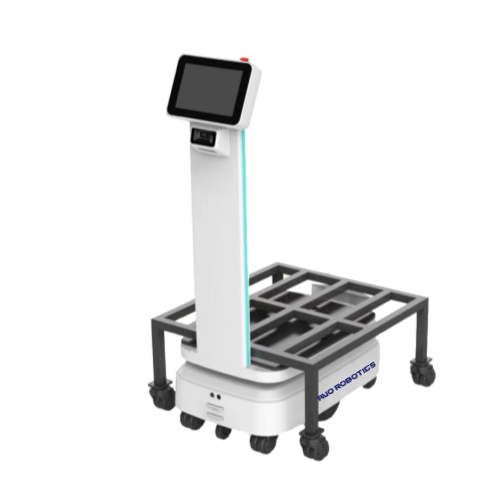

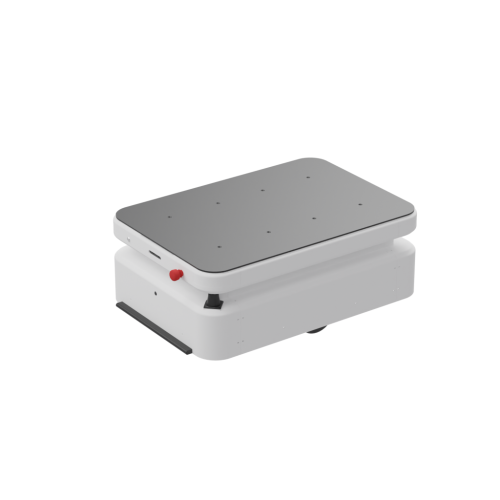

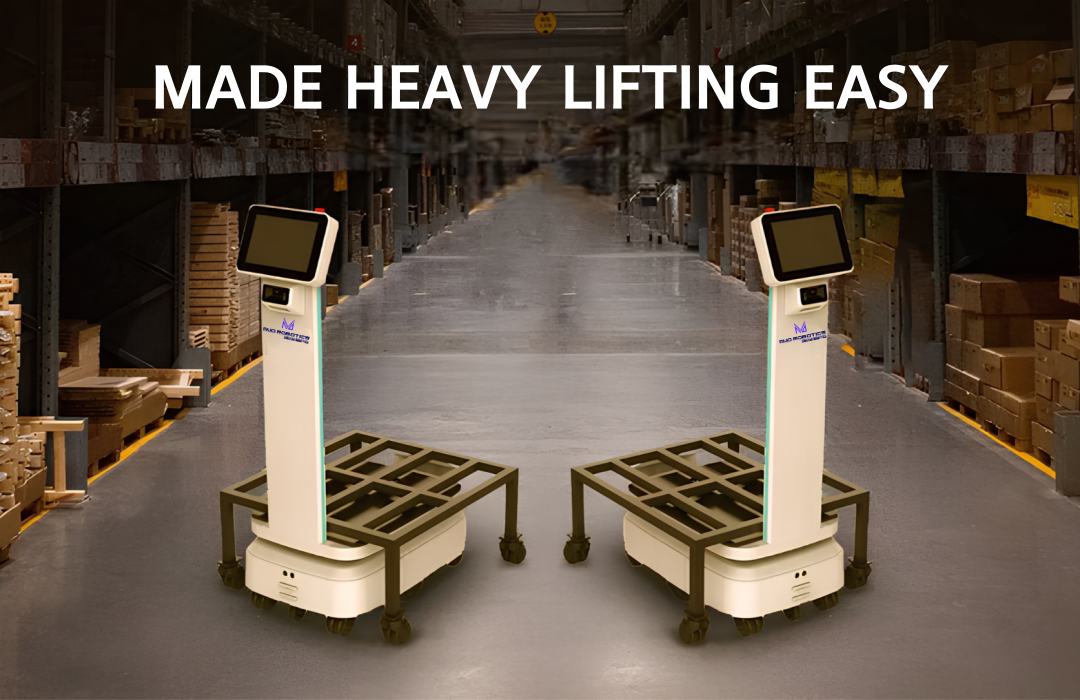

LIFT AMR

L-SEIRES LIFTING ROBOTS

AUTOMOMOUSLY IDENTIFY SHELVES AND PERFORM LIFTING,
SUPPORTING INTEGRATOIN WITH WMS, MES, ERP SYSTEM.

L-150

- 150KG PAYLOAD

- LOADING AREA(mm)  : 700X600

- MINIMUM PASSAGE WIDTH : 70cm
- MAXIMUM SPEED : 1.2m/s

- POSITION ACCURACY : 10mm

- NETWORK: 4G/wifi

L-300 / L-300E

- 300KG PAYLOAD

- LOADING AREA(mm)  : 700X600 / 940X810

- MINIMUM PASSAGE WIDTH : 70cm / 80cm
- MAXIMUM SPEED : 1.2m/s

- POSITION ACCURACY : 10mm

- NETWORK: 4G/wifi

L-600

- 600KG PAYLOAD

- LOADING AREA(mm)  : 940X810

- MINIMUM PASSAGE WIDTH : 80cm
- MAXIMUM SPEED : 1.2m/s

- POSITION ACCURACY : 10mm

- NETWORK: 4G/wifi

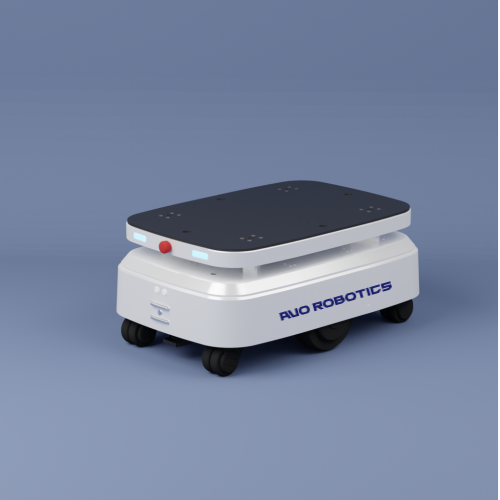

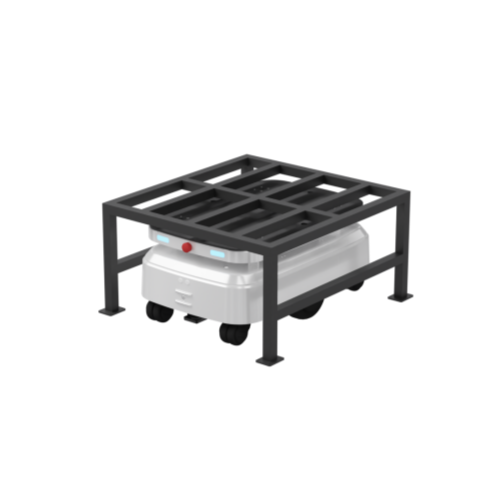

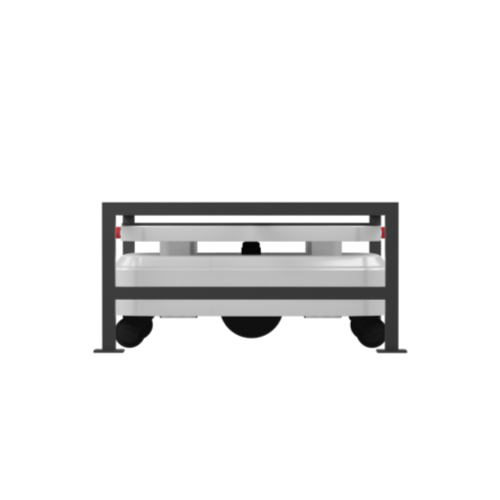

SUB LIFT ROBOT

S-SERIES SUB-TYPE LIFTING ROBOTS.

RCS SCHEDULING : SUPPORTS MULTI-ROBOT SCHEDULING

AUTOMOMOUSLY IDENTIFY SHELVES AND PERFORM LIFTING,
SUPPORTING INTEGRATOIN WITH WMS, MES, ERP SYSTEM.

S-150

- 150KG PAYLOAD

- LOADING AREA(mm)  : 700X600

- MINIMUM PASSAGE WIDTH : 70cm
- MAXIMUM SPEED : 1.2m/s

- POSITION ACCURACY : 10mm

- NETWORK: 4G/wifi

S-300 / S-300E

- 300KG PAYLOAD

- LOADING AREA(mm)  : 700X600 / 940X810

- MINIMUM PASSAGE WIDTH : 70cm / 80cm
- MAXIMUM SPEED : 1.2m/s

- POSITION ACCURACY : 10mm

- NETWORK: 4G/wifi

S-600

- 600KG PAYLOAD

- LOADING AREA(mm)  : 940X810

- MINIMUM PASSAGE WIDTH : 80cm
- MAXIMUM SPEED : 1.2m/s

- POSITION ACCURACY : 10mm

- NETWORK: 4G/wifi

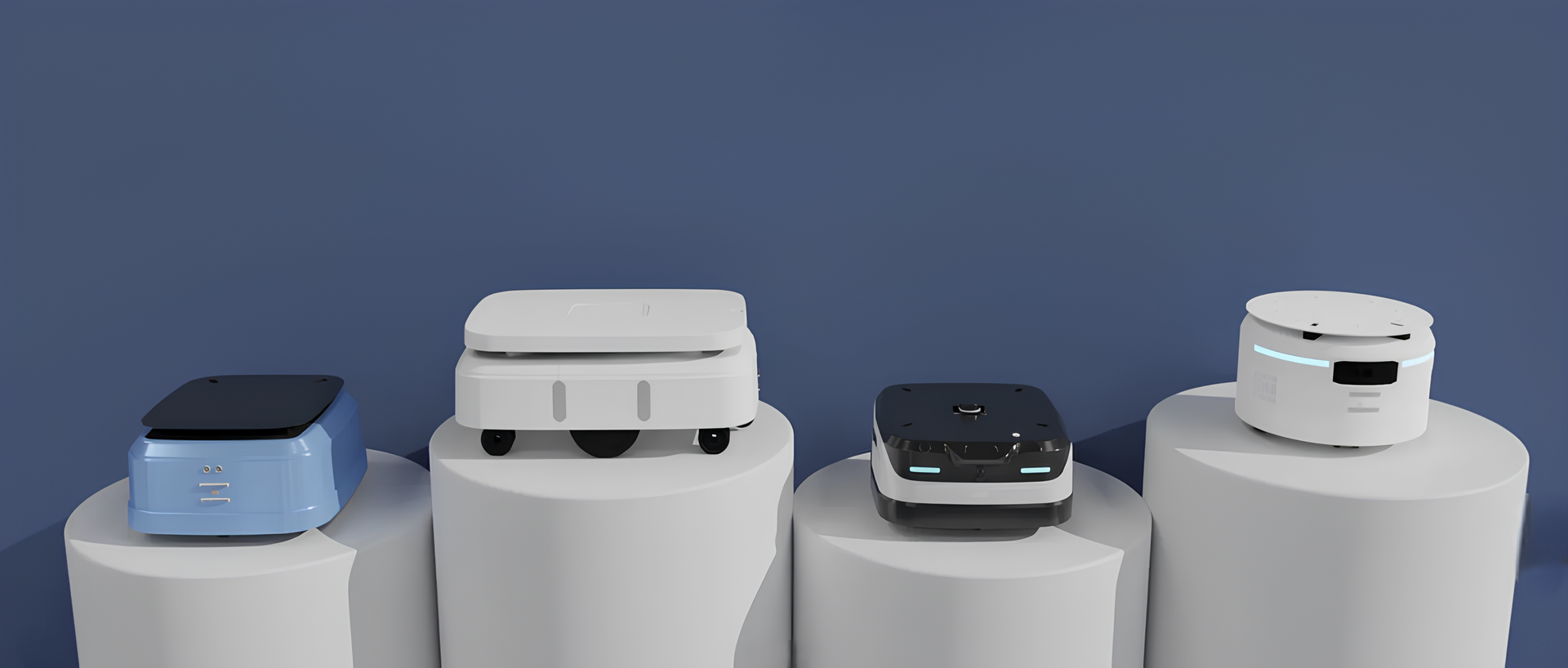

ROBOT CAN BE TRANSFORMED INTO VARIOUS FORMS,

DEPENDING ON THE SITUATION IN THE FIELD.

INTRODUCING JEWELRY TO FEEL GOOD ABOUT,ABOUT
HANDCRAFTED FROM THE MOST SUSTAINABLE MATERIALS.

S-150

- 150KG PAYLOAD

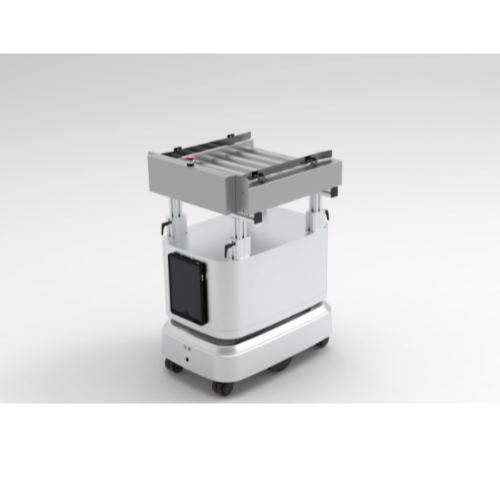

CONVEYOR ROBOT

R-100


- 100KG PAYLOAD

- LOADING AREA(mm)  : 713X471

- ADJUSTABLE HEIGHT : 550~1000mm

- STOPPING ANGLE ACCURACY : 1°

- MINIMUM PASSAGE WIDTH : 70cm
- MAXIMUM SPEED : 1.2m/s

- POSITION ACCURACY : 10mm

- NETWORK: 4G/wifi

S-600

- 600KG PAYLOAD

mobile background

ADVANTAGES

OF

AVO ROBOTICS

INDUSTRIAL

ROBOTS.

RAPID DEPLOYMENT IN MINUTES

SIMPLE AND CONVENIENT



MULTI-ROBOT INTELLIGENT SCHEDULING




STABLE POSITIONING, NAVIGATION AND

OBSTACLE AVOIDANCE

IN COMPLEX FACTORY



COMPATIBLE WITH

INDOOR AND OUTDOOR ENVIRONMENTS




OPEN AT THE

SOURCE CODE LEVEL,

QUICK INTEGRATION WITH FACTORY SYSTEMS



MULTI-TERMINAL+ CLOUD

INTEGRATION SOLUTION





FLEXIBLE CUSTOMIZATION FORFACTORY MATERIAL HANDLING

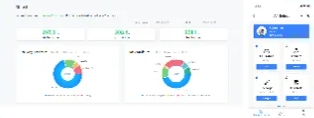

ROBOT BIG DATA

CLOUD COMPUTING PLATFORM

(SUPPORT PRIVATE CLOUD OFFLINE OPERATION)



FLEXIBLE CUSTOMIZATOIN AND EXPANSION

Fully Self-developed and Expandable Peripherals



The entire product line has strong scalability, and different modules can be installed to meet the actual needs of different business scenarios based on customer on-site business processes.




IoT Devices
Automatic Notification Devices
  • Autonomous elevator riding
  • Automatic door
  • Rolling door and gate


Notifications through

  • lights.
  • speakers
  • telephones , etc.


Call Devices

Can be called via

  • call buttons
  • PADs
  • Phones, etc.


Follow Devices

Robots can recognize and

follow people

Other Industrial Peripherals
  • Barcode scanners
  • RFID
  • Printing
  • USB devices
